Description

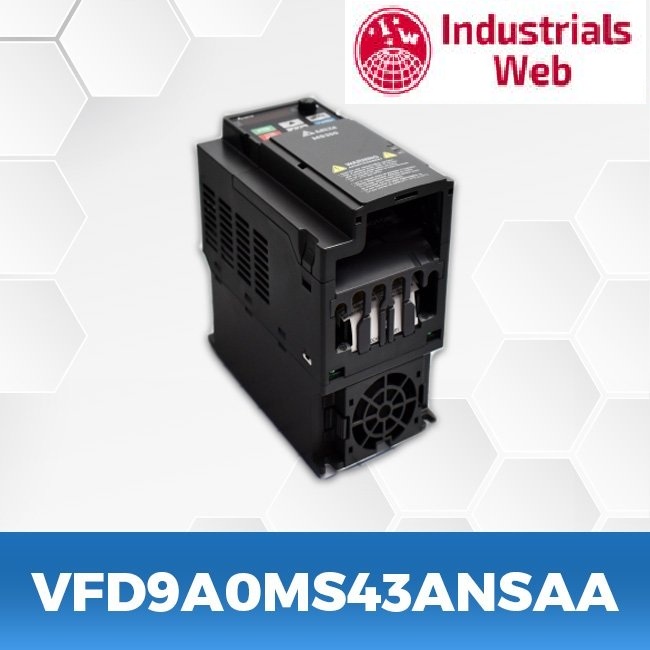

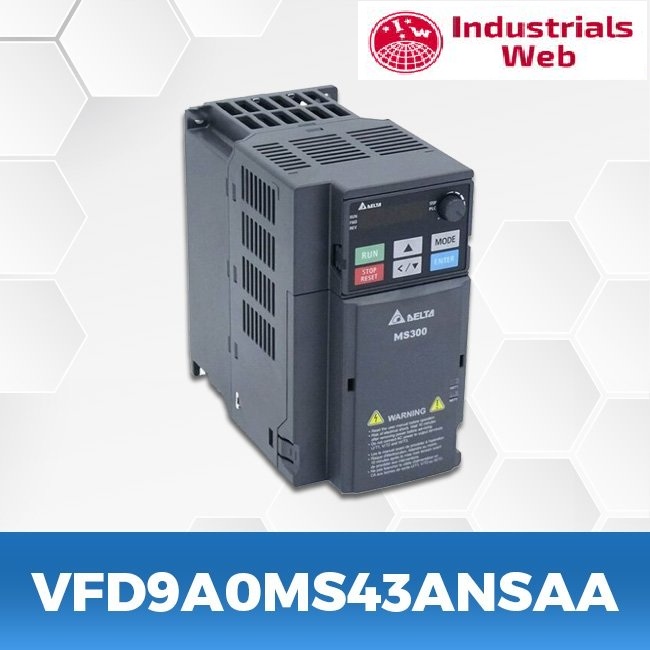

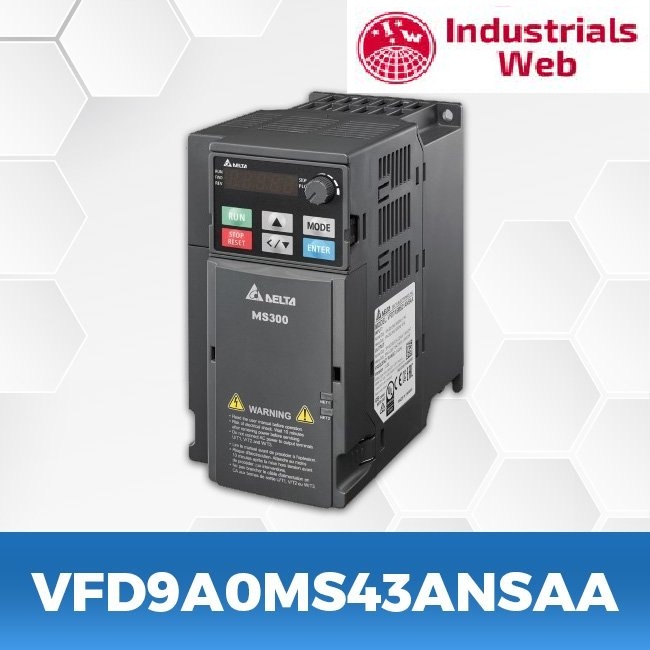

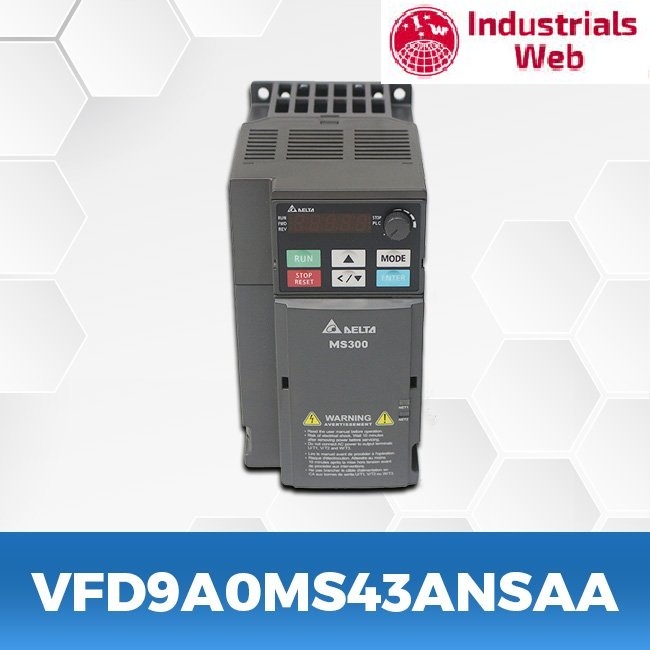

The MS300 is Delta’s compact vector control drive line. Optimized Space Utilization Compact Design | Side-by-Side Installation Communication Options Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation Outstanding Drive Performance Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB) Strong System Support Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control Wide Range of Applications Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
PRODUCT SPECIFICATIONS
| Model Name | VFD9A0MS43ANSAA |
| Series | MS-300 Series |
| Input Voltage – Phase | 460 V – 3 Phase |
| Motor Power Range | 5 HP – 3.7 KW |
| Frequency | 0 – 599 Hz |
| Frame Size | A5 |
| IP Level | IP 20 |
| EMC Filter | Optional |
| Normal Duty* Amps | 9 A |
| Heavy Duty** Amps : | 10.5 A |
| Weight | 5 KG |

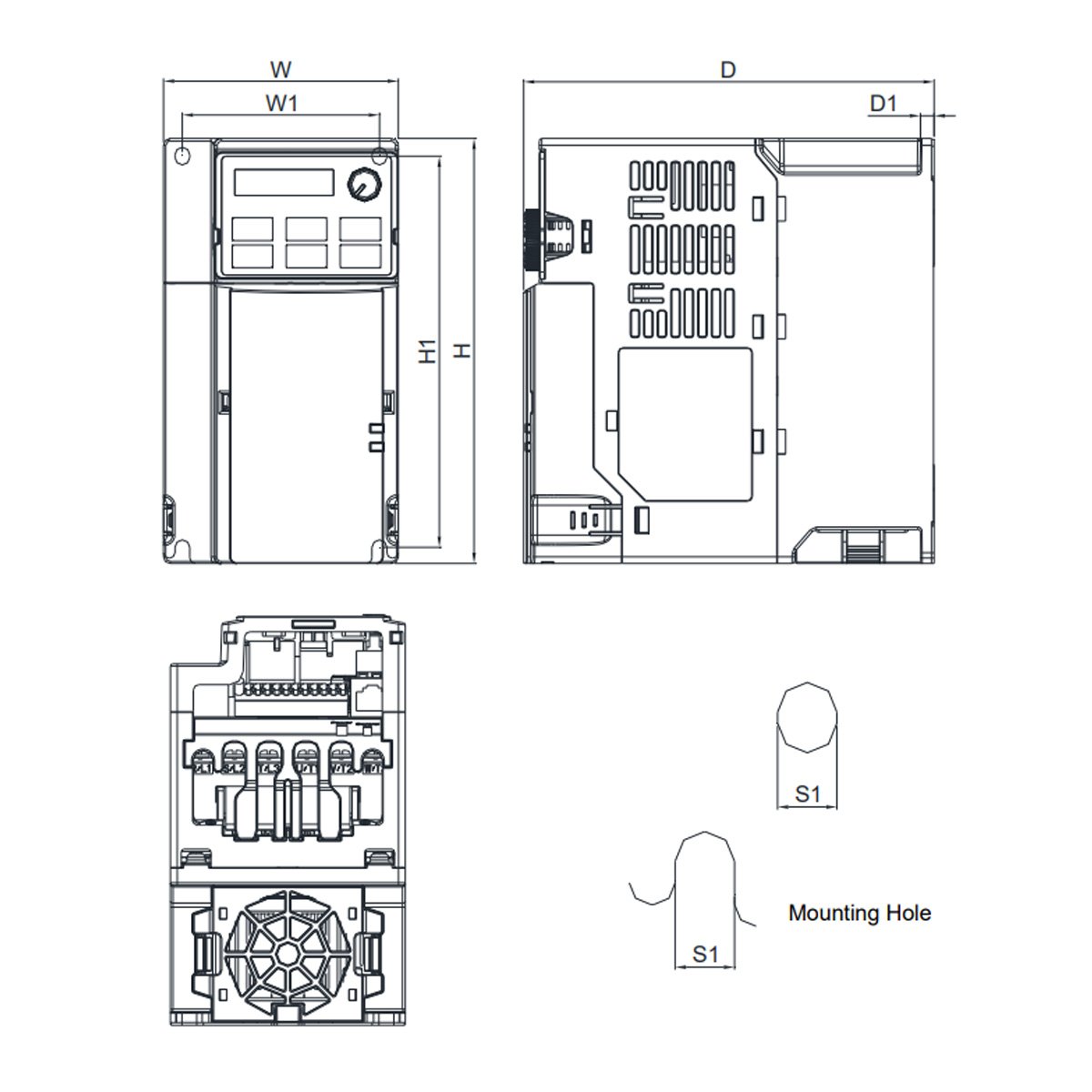

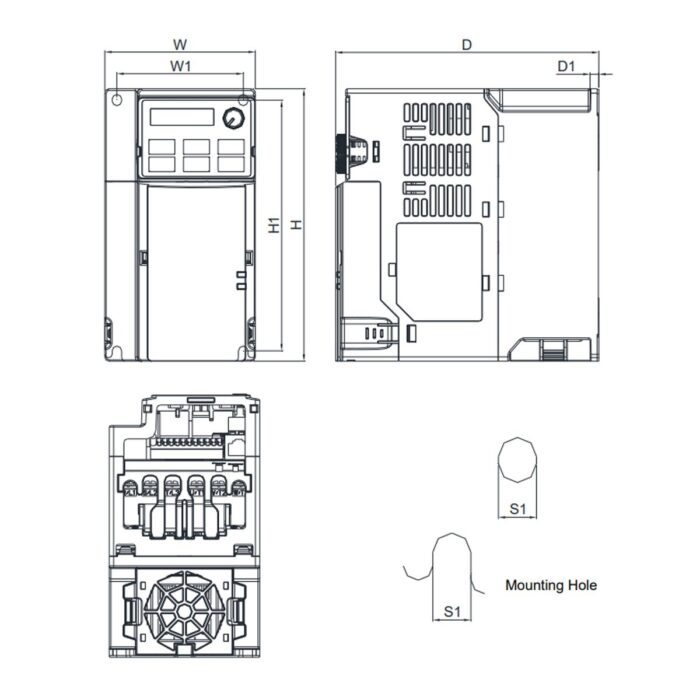

| Dimensions | 87 mm (W) x 157 mm (H) x 179 mm (D) |
